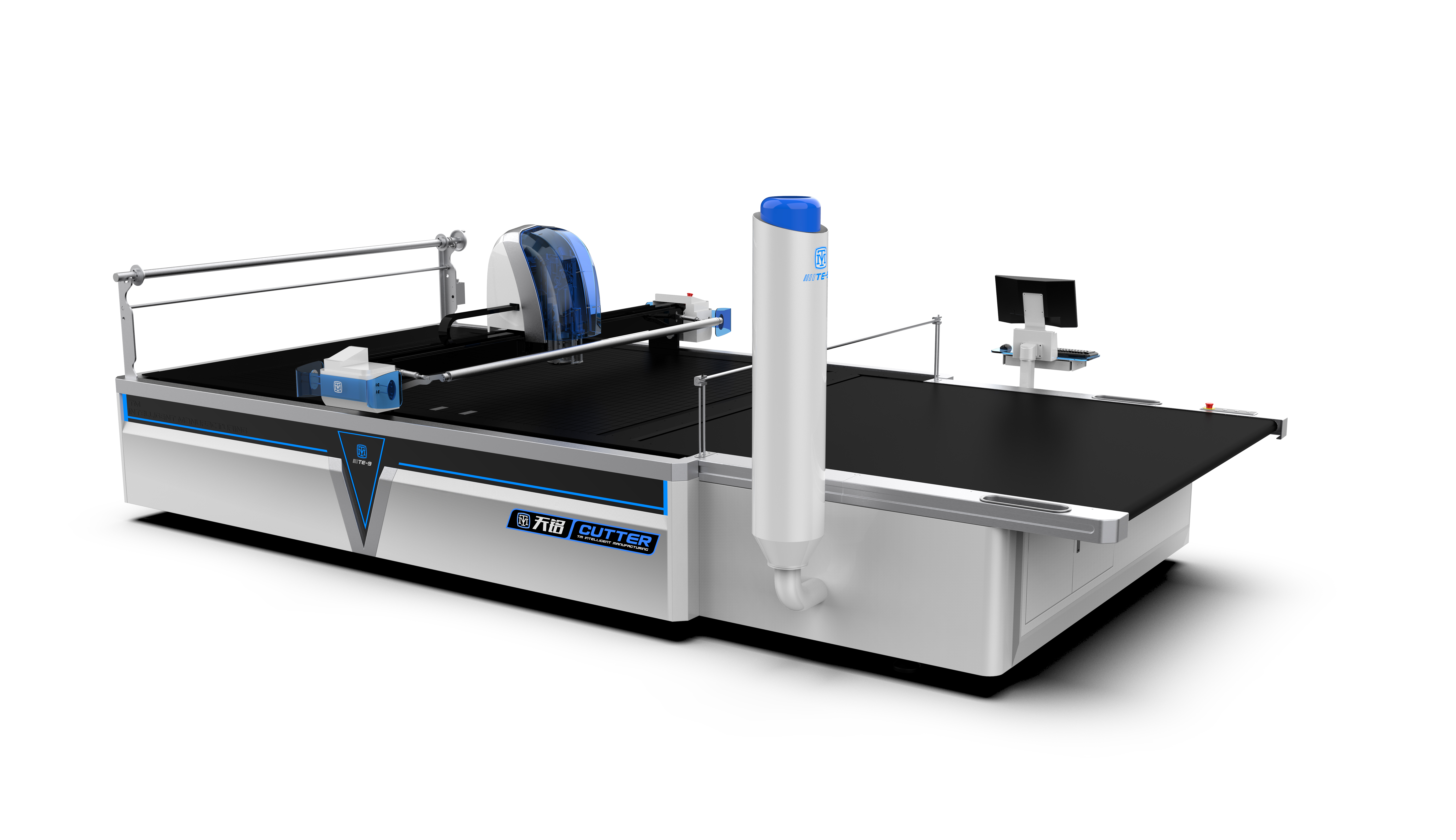

Silicone fabric automatic cutting machine

MOQ :        1 SET.
Availability:
Quantity:
  • TE-2025

  • TIMING


Tech Data



Max Cutting Height

6cm (after vac-sorb)

Cutting Window

length (no limitation)

width (no wider than the fabric width)

Working Width (Y)

2000mm

Normal Working Length (X)

2500mm

Electricity

Three phase 380V, 30KVA,50~60Hz

Power Consumption

18KW max

CAD&CAM Connect way

Ethernet communication / USB Flash memory

Max speed of blade working

6000rpm/min

Compressed Air

0.55Mpa 160L/min

Cutting Speed

max.60000mm/min

Acceleration

0.8~1g (N/ Kg)

Noise Level

< 75 dbA




Company Information


Wuhan TIMING Weiye Technology Co., Ltd


TIMING is an up-to-date industrial company, founded in 2012, constantly oriented to the new technologies  and able to provide the cutting system for companies manufacturing apparel, technical fabric and composites. Nowadays, the main products we are manufacturing includes fabric automatic cutting machines,spreading machines, oscillating knife cutting machines, laser cutting machines and etc. With more than 100 employees, 3000  square meters workshop, TIMING factory with auto cutter production capacity at 100 sets monthly.


TIMING not only supplies machines, but it is the best technological partner, helping the customer to solve the cutting and spreading problem in production. Able to install all over the world more than 1500 units among cutting machine, spreading machines and etc.



Now in our sixteenth year, our vision is to become the first choice provider of intelligent cutting solutions; by investing in our people and continuing to improve our skills within our field of expertise, we will be known for our commitment to accuracy, quality and sustainability for the benefit of our clients.



Packing Details
c1588f65ee6be85aca46d15b360bb05
eb7e4aba05bc953a4c6d225d5f5c41f




Our Services


1. Phone Support for solving problems.

2. Remote Support provided by our consultants through the Internet by means of the Team Viewer program.

3. ON-Site Support in abroad.

4. Sample Free Testing. We offer samples free testing according to clients requirements on processing before selling. So that we offer you the best machine and solutions.

5. Free Training. We provide clients with relative free training on operation and maintenancotally controlling it.



TIMING Customer

照片墙




Previous:
Next:

Product Category

Send a inquiry

FAQs

  • Q Are you trading company or manufacturer?

    A
    We are manufacturer, TIMING factory is located in Ezhou, a city nearby Wuhan, Hubei province,China.
  • Q How many years does your factory work on the cutter?

    A
    We have been working on motion control system since 2010,more than 10 years.
  • Q What languages are supported?

    A
    English/Vietnamese/Romanian/Russian and Chinese in menu.If other language in need,contact your sales window for details.
  • Q What about the warranty?

    A
    12 months from the date of installation.
  • Q Should I prepare a computer?

    A
    One computer(DELL/LENOVO and etc.optional) in pack,no need to pay extra.
  • Q How thick your machine can cut?

    A
    Up to 9cm after compressed by vacuum. There are 3cm,5cm,7cm,9cm models available, choose the right model according to material/graphic marker nesting/yield and factory plan.
  • Q Will you send engineer for installation and training at overseas factory? What's the cost?

    A
    Yes,we will send engineer(s) for the cutter installation and training.NO labor cost,but round tickets and accommodations should be organized and paid by the customer.
    Concerning the Pandemic situation,about the installation and service,we have videos training and instructions,technical engineers of both parties,by aid of video&chat on wechat group,jointly check and approve the equipment accordingly.Meanwhile,we are in a position to do the remote support by Team Viewer.
