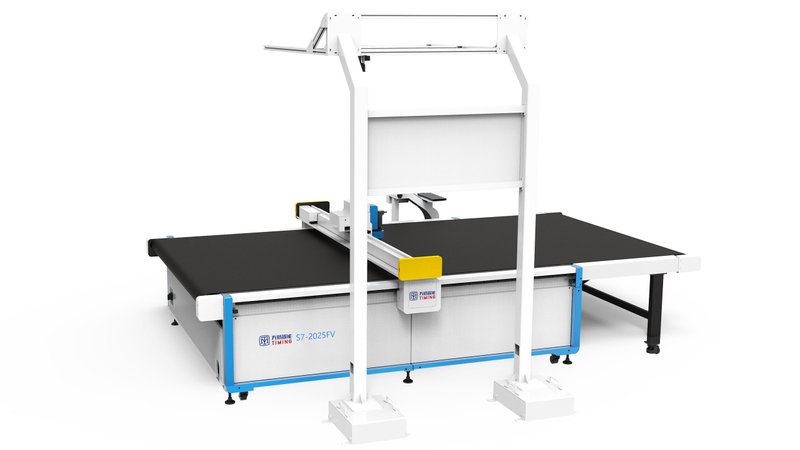

Single layer cnc automatic fabric cutting machine CCD Vision cutting system

MOQ: 1 set.
  • TMSC-2516F


Product Description

TMSC is TIMING’s single-ply cutting machine

TMSC CCD Vision cutting system is designed for printed fabrics contour cutting, mainly for sportswear, swimwear, carpet and etc. You get a cutter that save labor, save material, high efficiency and precision.

Product Characteristics

1. Durability and Leveling

2. High speed and high efficiency

3. Simple and intelligence

4. Easy to use and easy to maintain

5. Customization

Tech Data

Cutting Size(W*L)

1600mm* 2500mm

Machine Dimension(W*L)


Customized Length Range

800mm ~5000mm

Customized Width Range

800mm ~2600mm

Cutting Speed

0mm/s ~ 1500mm/s

Tool Configuration

Tungsten steel straight knife , round knife , and other tools like V notch, I notch etc optional

Drive Motor

Servo Motor

Vibration Cutter

Vibration speed 18000/Min RPM

80W motor

Material Fixed Method

Vacuum absorb

Data format


Air pressure, Flow

0.55MPa 100L/min

Vacuum Pump Power


Working Voltage/ Frequency

AC220V ± 22V,50Hz ± 1Hz

Vacuum Pump Working Voltage/ Frequency

AC380V ± 38V,50Hz ± 1Hz

Work Environment

Temperature  0°~ 40°

Humidity  20% ~ 80%

Product Details


TIMING Customers



Product Category

Send a inquiry


  • Q Are you trading company or manufacturer?

    We are manufacturer, TIMING factory is located in Ezhou, a city nearby Wuhan, Hubei province,China.
  • Q How many years does your factory work on the cutter?

    We have been working on motion control system since 2010,more than 10 years.
  • Q What languages are supported?

    English/Vietnamese/Romanian/Russian and Chinese in menu.If other language in need,contact your sales window for details.
  • Q What about the warranty?

    12 months from the date of installation.
  • Q Should I prepare a computer?

    One computer(DELL/LENOVO and etc.optional) in pack,no need to pay extra.
  • Q How thick your machine can cut?

    Up to 9cm after compressed by vacuum. There are 3cm,5cm,7cm,9cm models available, choose the right model according to material/graphic marker nesting/yield and factory plan.
  • Q Will you send engineer for installation and training at overseas factory? What's the cost?

    Yes,we will send engineer(s) for the cutter installation and training.NO labor cost,but round tickets and accommodations should be organized and paid by the customer.
    Concerning the Pandemic situation,about the installation and service,we have videos training and instructions,technical engineers of both parties,by aid of video&chat on wechat group,jointly check and approve the equipment accordingly.Meanwhile,we are in a position to do the remote support by Team Viewer.
